HIKARISOFT CO LTD designs and manufactures portable test and measurement equipment for Digital Television. Our products are used by engineers worldwide for capturing and analyzing DTV transmissions.

NEW USB type Multi-standard Receiver with TS/TLV Output (ISDB-T/S/S3/C, DVB-S/S2)

Model NameISDB-TS3
JAN Code4582228120082
Supported Frequency90 to 780MHz ISDB-C/ISDB-T 1/3/13 segment
1032 to 2072Mhz, 2224 to 3224MHz ISDB-S/S3, DVB-S/S2
RF I/FRF IN 75 ohm F-Connector, -75dBm to -10dBm
BS-CS I/FRF IN 75 ohm F-Connector, -83dBm(-61dBm*) to -15dBm
LNB Power11-15V 400mA, 40kHz TONE
Bandwidth6, 8MHz (ISDB-T)
TS Out I/FUSB 2.0 High-Speed, 120Mbps max
PowerUSB Bus Power 900mA, B-type
Size WxHxD120mm x 55mm x 135mm
Weight400g
Operating EnvironmentWindows 7, 8 32/64 bit. Linux.
DownloadISDB-TS3.pdf
 ISDB-TS3 Image

NEW Compact ISDB-T Receiver for Brazil (SBTVD) or Japan Terrestrial Digital

Model NameISDB-TB2
JAN Code4582228120068
Supported Frequency47 ～ 1000MHz
ISDB-T 1/3/13 segment
Bandwidth6, 7, 8MHz
RF I/FRF IN 75 ohm MCX Connector w/Adapter, -100dB(mW) to -12db(mW)
TS Out I/FUSB 2.0 High-Speed, 40Mbps max
PowerUSB Bus Power 250mA, Mini-B type
Size WxHxD57mm x 18mm x 50mm
Weight40g
Operating EnvironmentWindows XP, Vista, 7, 8 32/64 bit. Linux 2.6+.
DownloadISDB-TB2.pdf
 ISDB-TB2 Image

NEW Compact ISDB-T Receiver with DVB-ASI Output for Brazil or Japan Terrestrial Digital

Model NameISDB-TASI
JAN Code4582228120051 STD
JAN Code4582228120051 STANDALONE
Supported Frequency47 ~ 1000MHz
ISDB-T 1/3/13 segment
Bandwidth6, 7, 8MHz
RF I/FRF IN 75 ohm F Connector, -100dB(mW) to -12db(mW)
TS Out I/F (STD only)USB 2.0 High-Speed, 40Mbps max
ASI Out I/F32/40Mbps DVB-ASI, 75 ohm BNC, 204 byte TS
PowerUSB Bus Power 350mA, Mini-B type
Size WxHxD80mm x 24mm x 88mm
Weight120g
Operating EnvironmentWindows XP, Vista, 7, 8 32/64 bit. Linux 2.6+.
 ISDB-TASI Image

USB Type TS Output OFDM Demodulator Adapter for ISDB-T Terrestrial Digital

Model NameISDB-TADP2
JAN Code4582228120013
Supported Frequency470 ~ 760MHz (UHF)
ISDB-T 1/3/13 segment
RF I/FRF IN 75 ohm F Connector, -97dB(mW) to -12db(mW)
TS Out I/FUSB 2.0 High-Speed, 32Mbps max
B-CAS InterfaceBuilt in Card Reader (B-CAS card is NOT included)
PowerUSB Bus Power 450mA, B-type
Size WxHxD112mm x 36mm x 135mm
Weight400g
Operating EnvironmentWindows XP, Vista, 7 32/64 bit. Linux 2.6+.
 ISDB-TADP2 Image

USB Type TS Output 8PSK Demodulator Adapter for ISDB-S BS/110CS Digital

Model NameISDB-SADP
JAN Code4582228120044
Supported Frequency950 ~ 2150MHz ISDB-S TC8PSK, QPSK
RF I/FRF IN 75 ohm F Connector
TS Out I/FUSB 2.0 High Speed, 54Mbps max
B-CAS InterfaceBuilt in Card Reader (B-CAS card is NOT included)
PowerUSB Bus Power 460mA, B-type
Size WxHxD112mm x 36mm x 135mm
Weight400g
Operating EnvironmentWindows XP, Vista, 7 32/64 bit. Linux 2.6+.

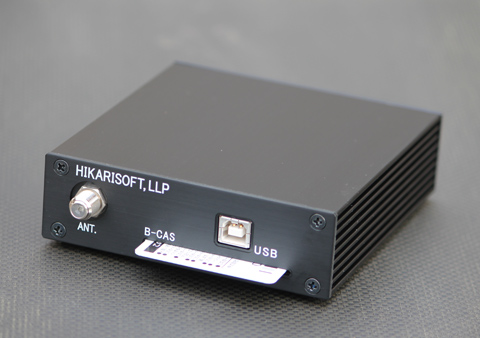

 ISDB-SADP Image

Compact ISDB-S Receiver for ISDB-S BS/110CS Digital

Model NameISDB-TS1
JAN Code4582228120037
Supported Frequency950 ~ 2150MHz ISDB-S TC8PSK, QPSK
RF I/FRF IN 75 ohm F Connector
TS Out I/FUSB 2.0 High Speed, 54Mbps max
PowerUSB Bus Power 350mA, Mini-B type
Size WxHxD57mm x 18mm x 80mm
Weight100g
Operating EnvironmentWindows XP, Vista, 7 32/64 bit. Linux 2.6+.
 ISDB-TS1 Image

Compact ISDB-T Receiver for Brazil (SBTVD) or Japan Terrestrial Digital (EOL)

Model NameISDB-TB1 (EOL)
JAN Code4582228120020
Supported Frequency174 ~ 219MHz, 470 ~ 806MHz (VHF HIGH, UHF)
ISDB-T 1/3/13 segment
RF I/FRF IN 75 ohm F Connector, -97dB(mW) to -12db(mW)
TS Out I/FUSB 2.0 High-Speed, 32Mbps max
PowerUSB Bus Power 300mA, Mini-B type
Size WxHxD57mm x 18mm x 80mm
Weight100g
Operating EnvironmentWindows XP, Vista, 7 32/64 bit. Linux 2.6+.
 ISDB-TB1 Image

TSReader Standard / Professional

All HIKARISOFT hardware is fully supported by our custom input module for TSReader. Official website: www.tsreader.com
